Lecture 11: Image Processing

Topic overview#

Resources used:

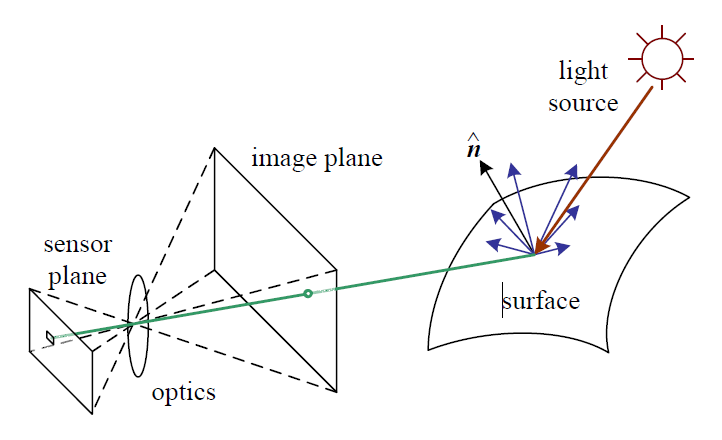

The light that enters a camera can be modelled as continuous signal: $$f(x, y),\space -\infty < x, y < \infty$$
Digital images are sampled: $$f[n, m], \space n = n \Delta_x, m = n \Delta_y$$ where typically $\Delta_x = \Delta_y$
The area $\Delta_x \times \Delta_y$ is called a picture element, or pixel

A photosensor responds to light intensity with an electrical signal
Physical filters restrict the colour that reaches each sensor
On most digital cameras, 1 sensor $\ne$ 1 pixel; it is instead interpolated to create a typical 3-channel image
(Inexplicably, the Python imaging library Pillow uses the term “band”)

bg right:25% 85%

Bayer sensor pattern diagram by en:User:Cburnett - Own work, CC BY-SA 3.0, Link

Size (np.shape) usually defined as [rows, cols, (channels)]
Typical 8-bit image: integers from 0 to 255
- For processing, common to convert to float and normalize
RGB examples of individual pixels:
- [255, 0, 0]
- [128, 128, 128]
- [255, 255, 255]

PNG is an image format released in 1996 as a GIF replacement
Typically 8 bits per channel, but can be 1, 2, 4, 8, or 16
3x RGB channels, plus an optional alpha (transparency) channel
Space saved in two ways:
- Indexed colour, where numbers map to a finite set of colours
- Lossless compression, e.g. [0 0 0 0 0 0 0] $\rightarrow$ 7 0

What kinds of images would benefit from this compression scheme?

As convolutional neural networks (CNNs) gained popularity as image recognition powerhouses, people started using them for all sorts of things
One example: predicting whether someone is a criminal based on a photo
Thoroughly debunked in a paper that mentions, among other issues:
- Criminal samples are all 8-bit greyscale PNG photographs of printed images, taken with the same camera
- Non-criminals are RGB JPEGs from 5 different sources, converted to greyscale to be “compatible with mugshots from the criminal category”

What’s the problem here?

As with audio, images should be consistent
Let’s check out some public datasets
Two approaches:
- keep raw data and process on the fly (e.g. ImageNet)
- apply some preprocessing and store (e.g. CIFAR-10)
Common to do a bit of both, e.g. resize and save with consistent format, then apply various transforms during both training and inference

As usual, there is a tradeoff between time and space

Geometric transforms resize, rotate, skew, shift, etc
Point operators independently change each pixel, e.g. histogram equalization
Linear filters compute new pixel values from a weighted sum of values in a small neighbourhood
Nonlinear filters compute new pixel values from a small neighbourhood in a nonlinear fashion

For computer vision purposes, most images need to be resized
Most often, a square aspect ratio is used
- Can be rotated 90 degrees without modifying code
- Simplifies parameter specification
- Maybe some CUDA advantage if divisible by 8 (e.g. $224 \times 224$)
Resizing needs interpolation (or resampling), and distorts aspect ratio
Alternatively (or additionally), image crops can be used

A filter or convolution kernel is a small (usually) square matrix that gets convolved with the image: $$(f * g)[n, m] = \sum_{i=0}^{n}\sum_{j=0}^{m} f[i, j]g[n-i, m-j]$$
Fun fact: this is the same as multiplication in frequency

center

Linear filters are simple weighted summations, and form the core of convolutional neural networks, widely used in computer vision
Sometimes, nonlinear effects are useful, such as:
- Median image filtering to reduce certain types of noise
- Morphological operators for binary image masks

There is a huge world of image processing, including techniques for segmentation, feature detection, registration… too much to cover in this course!

In addition to Pillow and the usual numpy, matplotlib, scipy libraries:

ImageMagick is a command-line tool that can be combined with bash scripting to process a bunch of images, e.g.:
```
mkdir resized
for img in *.jpg; do
   magick $img -resize 512x512! resized/$img
done
```
OpenCV has functionality overlap with Pillow, but also computer vision algorithms
Torchvision provides load-time transformations for use with deep learning models
ITK is the OG classical image processing toolbox focused on medical imaging
