Topic overview

• Why transformations are necessary
• Common transformations
• Dimensionality reduction

Resources used:

• Feature Engineering Chapter 6
• Hands on Machine Learning with Scikit-Learn and Tensorflow/PyTorch, Chapter 4. Available at MRU Library
• Scikit-learn user guide: Chapter 7
• Introduction to Machine Learning with Python. Available at MRU Library

Common 1:1 transformations

"Most models work best when each feature (and in regression also the target) is loosely Gaussian distributed" -- Introduction to Machine Learning with Python

• Scaling: normalization or standardization
• Nonlinear transforms: log, square root, polynomial
• Fancier methods: Box-Cox, Yeo-Johnson

A brief intro to gradient descent

• Many linear models minimize some cost function through gradient descent

• The gradient is a vector of partial derivatives

  for some scalar-valued

Descending the gradient

For a loss (or cost) function such as

1. Start with a random

2. Calculate the gradient for the current

3. Update as

4. Repeat 2-3 until some stopping criterion is met

   where is the learning rate, or the size of step to take in the direction opposite the gradient.

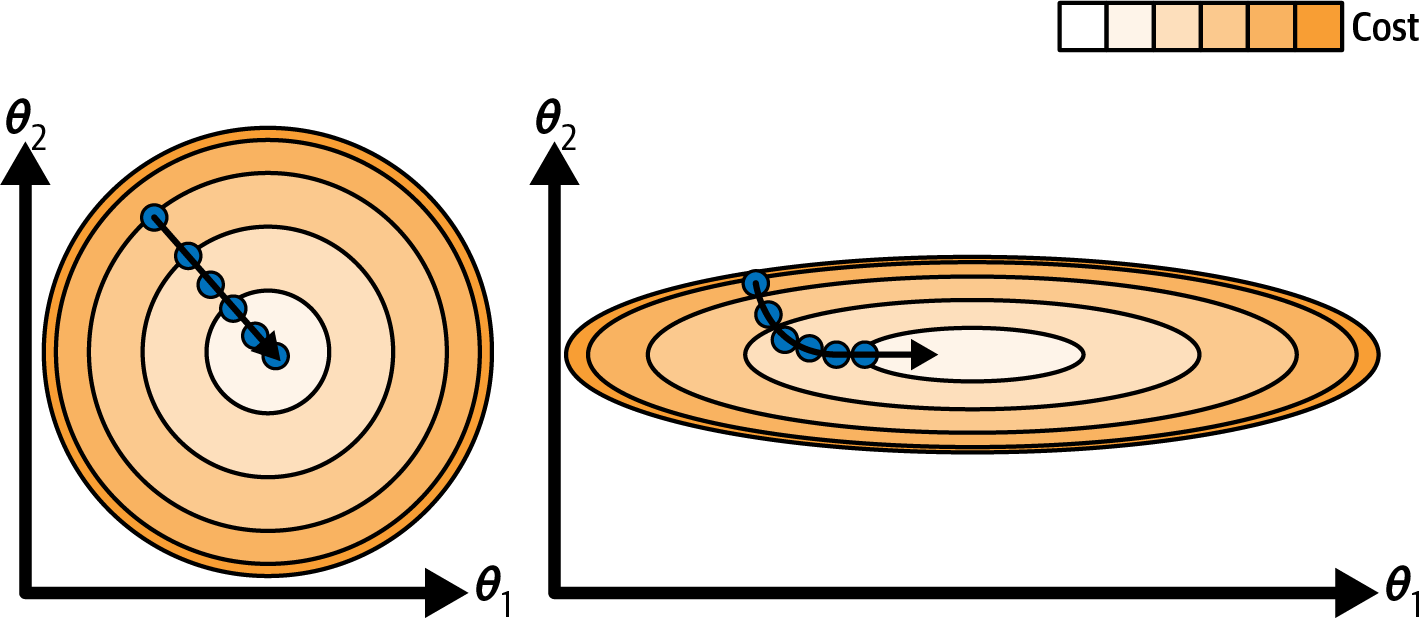

Visualizing in 2D

• The gradient has dimensions, where is the number of features
• step size is a scalar parameter

Main takeaway: feature should be more or less on the same scale

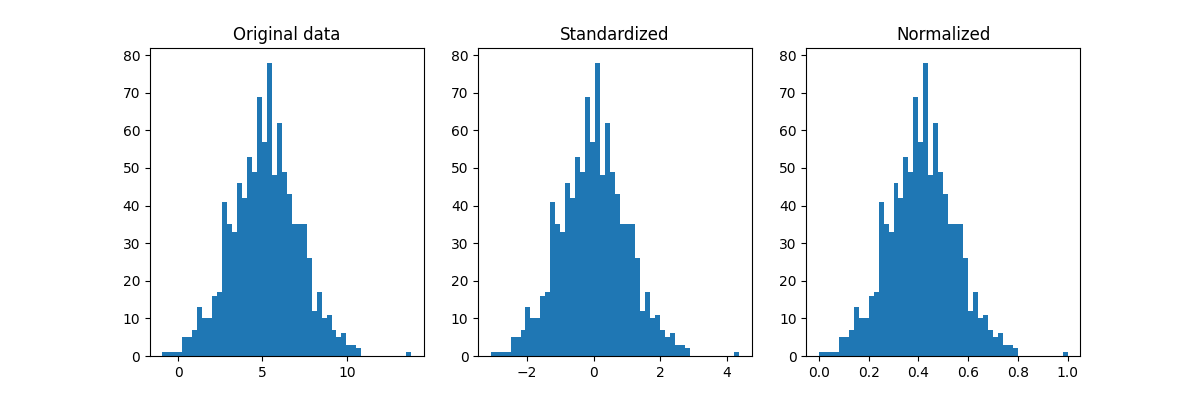

Approaches to scaling

Transformations in training vs inference

• Define functions, e.g.

  def standardize(X, mu, sigma):
      return (X - mu) / sigma


• Compute scaling parameters on the training data, then stash them somewhere:

  mu = X_train.mean()
  sigma = X_train.std()
  # ... later on, during inference
  X = standardize(X, mu, sigma)


  What would happen if standardize instead computed values on the fly?
  What else am I missing here?

Manual approach in the wild

You may run across magic numbers, e.g from the PyTorch tutorials:

import torch
from torchvision import transforms, datasets

data_transform = transforms.Compose([
        transforms.RandomResizedCrop(224),
        transforms.RandomHorizontalFlip(),
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.485, 0.456, 0.406],
                             std=[0.229, 0.224, 0.225])
    ])

This really should have a comment! Derived from ImageNet.

An alternative solution: Scikit-learn Pipelines

• Hard-coding scaling (and other) parameters is okay, provided you can justify the choice and document where they came from
• Scikit-learn has a handy Pipeline class that handles this for you
• Each step in the pipeline has a fit and transform method
  • fit computes parameters from the training data
  • transform applies the transformation
  • fit_transform does both -- only use on training data!
• You can call these functions on the whole pipeline to fit or apply all in one go

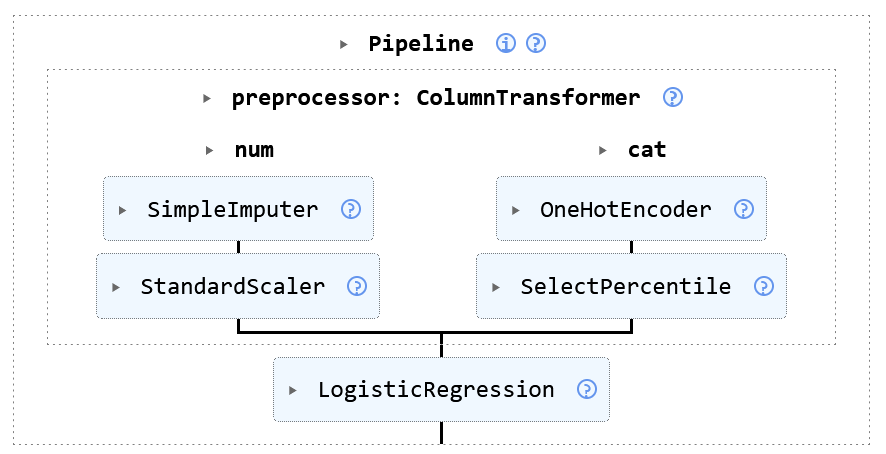

Pipeline

• The Pipeline class chains things together in a linear fashion
• Output from one step is input to the next
• make_pipeline is slightly simpler syntax (no names needed)

  from sklearn.pipeline import make_pipeline, Pipeline
  pipeline = make_pipeline(
      StandardScaler(),
      SGDClassifier()
  )
  # or, equivalently:
  pipeline = Pipeline([
      ('scaler', StandardScaler()),
      ('sgd', SGDClassifier())
  ])


1:many transformations

• So far our numeric transformations have been 1:1
• 1:many creates multiple features from 1, like binning
• Basis expansion introduces nonlinearity to a continuous feature, e.g.:

• More exciting is the spline version where you can define different polynomials for different ranges of

many:many transformations

• Linear projection methods create new features:
  where is the projection matrix and is the transformed data
• We can use this for dimensionality reduction by only keeping some of
• Example: Principle component analysis (PCA) finds the set of orthogonal vectors that explain the most variance

Covariance matrix

• The covariance matrix between all features in a matrix is:

• Just like regular variance, covariance scales with the data

• If you normalize this, you get the correlation matrix

Back to PCA

• Principle component analysis, proposed in 1901 by Karl Pearson, is a linear projection of multidimensional data onto the axes of maximum variance
• The axes are found by eigendecomposition of the covariance matrix:

• The eigenvectors form the new orthogonal basis for the covariance matrix , while the eigenvalues represent the amount of variance "explained"
• can be calculated as:

Linear discriminant analysis (LDA)

• Similar to PCA, but supervised
• Finds basis that maximize class separability
• Number of projection vectors must be <= min(n_classes - 1, n_features)
• Still uses projections and eigenvalues, but adds some statistical magic
• Key assumptions:
  • Features are normally distributed within a class
  • Classes have identical covariance matrices
• Implemented in Scikit-learn as LinearDiscriminantAnalysis

Other methods

• It seems crazy, but random projections can work to reduce dimensionality
• Another many:many transformation that has gained popularity in the "Deep Learning era" is the autoencoder
• These are (typically) neural networks that learn a lower-dimensional representation by training the output to match the input
• The "bottleneck" layer in the middle is the reduced representation
• During inference, the model is chopped in half

Pros and cons of dimensionality reduction

Higher list of pros, but still... don't do it unless it's demonstrably beneficial

Summary

• Numerical data often needs to be transformed to fit model assumptions
• Standardizing (and maybe normalizing) are very common
• Nonlinear transformations can also be beneficial
• Dimensionality reduction can help with model or visualization
• As usual, let the data be your guide

Coming up next

• Assignment 1 - due Friday, ish (Monday is fine, and let me know if you need more than that) - Already passed!
• Lab: practice with transformation pipelines Already passed!
• Next topic: Missing data, outliers, and interaction effects
